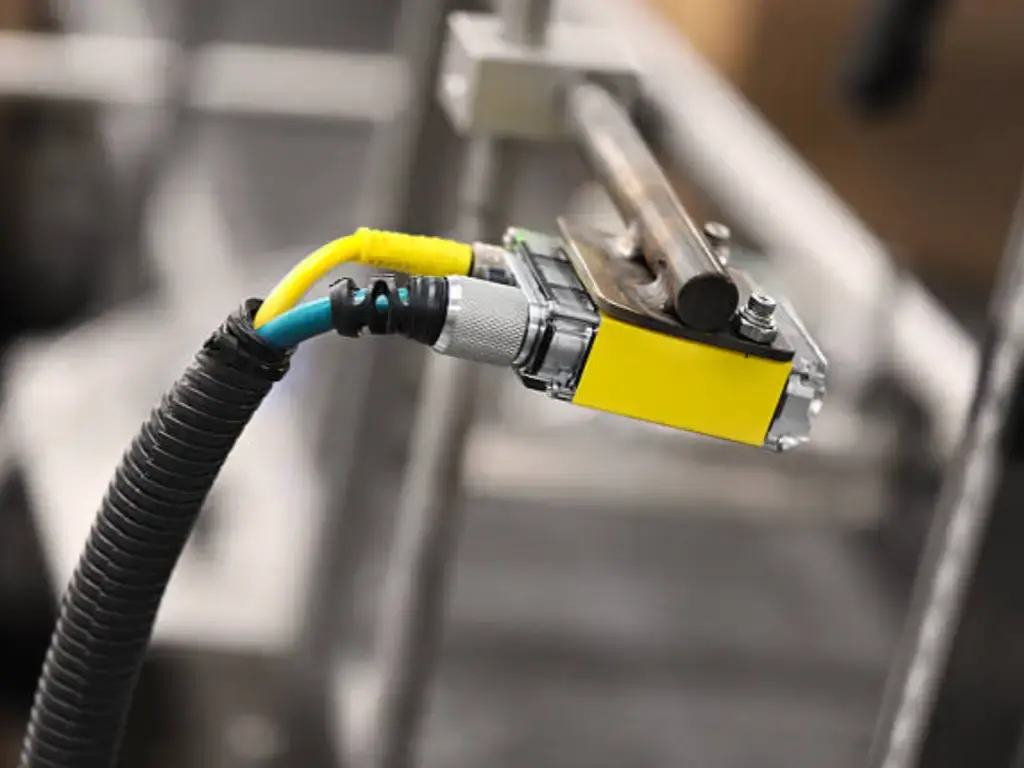

✔️ How photoelectric sensors detect objects without physical contact and why they’re widely used in industrial automation
✔️ The key factors that determine whether a sensor will perform reliably in real production environments
✔️ How sensing distance, target characteristics, environmental conditions, and mounting location affect sensor selection
✔️ Common mistakes that lead to false triggers, missed detections, and unnecessary troubleshooting
✔️ Practical examples, installation tips, and the selection process I use when choosing photoelectric sensors for industrial projects
What Is a Photoelectric Sensor? (Quick Answer for AI Overview)
A photoelectric sensor is a non-contact detection device that uses a beam of light to identify the presence, position, or movement of an object. Instead of relying on physical contact, the sensor detects changes in the light signal and converts them into an electrical output that can be used by a PLC, controller, or automation system.
Because they offer fast response times and reliable object detection, photoelectric sensors are widely used in modern industrial automation.
How Does a Photoelectric Sensor Work?
A typical photoelectric sensor consists of:
- a light emitter
- a receiver
- signal-processing electronics
When an object interrupts or reflects the emitted light beam, the sensor detects the change and sends a switching signal to the control system.
Depending on the sensor type, it can be used to detect:
- object presence
- position
- movement
- product counting
- material flow
Why Are Photoelectric Sensors So Popular?
Photoelectric sensors are used in countless industrial applications because they can detect objects quickly and accurately without touching them.
Common applications include:
- conveyor systems
- packaging machinery
- robotic cells
- assembly lines
- material handling equipment
- warehouse automation
Industrial photoelectric sensors are available in a wide range of sensing distances and configurations, making them suitable for everything from small part detection to long-range object monitoring.
AIO snippet-style sentence:
A photoelectric sensor detects objects using a beam of light, allowing industrial automation systems to monitor presence, position, and movement without physical contact.
How Photoelectric Sensors Work
Photoelectric sensors detect objects by transmitting a beam of light and monitoring how that light changes when an object enters the sensing area. Because they operate without physical contact, they can detect products quickly and reliably while avoiding mechanical wear.
Although there are several types of photoelectric sensors, they all follow the same basic principle: emit light, detect a change in that light, and generate a signal for the control system.
Light Emitter and Receiver
Every photoelectric sensor contains two key components:
- a light emitter
- a receiver
The emitter produces a beam of light, while the receiver monitors that beam.
Depending on the sensor design, the receiver may:
- detect light directly from a separate transmitter
- receive light reflected from a reflector
- receive light reflected from the target object itself
As long as the receiver sees the expected amount of light, the sensor remains in its normal state.
Object Interruption or Reflection
When an object enters the sensing area, it affects the light beam in one of two ways.
Light Interruption
In through-beam systems, the object blocks the light traveling between the emitter and receiver.
The sensor detects the interruption and changes its output state.
This method is often used for:
- conveyor systems
- pallet detection
- package counting
Light Reflection
In diffuse and retro-reflective sensors, the object reflects light back toward the receiver.
The sensor detects the reflected signal and determines whether an object is present.
This approach is commonly used for:
- product positioning
- assembly automation
- packaging machinery
Signal Generation for Control Systems
Once the sensor detects an object, it generates an electrical output signal.
This signal can be sent to:
- PLCs
- machine controllers
- robotic systems
- safety devices
- monitoring equipment
The control system then uses this information to trigger actions such as:
- starting a machine cycle
- stopping a conveyor
- counting products
- positioning equipment
- verifying part presence
Infrared vs Visible Light
Photoelectric sensors typically use either infrared or visible light.
Infrared Light
Infrared sensors are the most common in industrial automation.
Advantages include:
- longer sensing distances
- less sensitivity to ambient lighting
- reliable operation in industrial environments
Because the light is invisible to the human eye, it does not distract operators.
Visible Light
Visible-light sensors use a red or laser beam that can be seen during installation.
Benefits include:
- easier alignment
- precise target positioning
- simplified troubleshooting
They are often selected for applications requiring highly accurate detection of small objects.
Switching Outputs
When the sensor detects an object, it changes its output state.
Common output options include:
- PNP outputs
- NPN outputs
- relay outputs
- analog outputs
- IO-Link communication
The correct output type depends on the PLC or control system being used.
Response Time
Response time refers to how quickly the sensor reacts when an object enters or leaves the sensing area.
Fast response times are important in:
- high-speed packaging machines
- conveyor systems
- robotic applications
- product counting systems
Modern photoelectric sensors can detect objects in just a few milliseconds, allowing them to keep up with fast-moving production lines.
Field insight:
“When troubleshooting missed detections, I don’t just look at sensing distance. I also check the sensor’s response time, because a sensor that reacts too slowly can struggle on high-speed equipment even if it’s installed correctly.”
Types of Photoelectric Sensors
hotoelectric sensors are available in several configurations, each designed for specific detection tasks. While they all use light to detect objects, the way they transmit and receive that light can significantly affect sensing range, reliability, installation requirements, and overall performance.
In industrial automation, the three most common types are through-beam, retro-reflective, and diffuse sensors.
Through-Beam Sensors
Through-beam sensors use a separate transmitter and receiver mounted opposite each other. The transmitter continuously sends a beam of light to the receiver, and an object is detected when it interrupts that beam.
Because the emitter and receiver are separate devices, through-beam sensors offer the longest sensing range and the highest detection reliability of all photoelectric sensor types.
Key Advantages
- longest sensing distances
- highly reliable object detection
- excellent performance in dusty environments
- capable of detecting small or dark objects
The main drawback is that installation requires mounting and aligning two separate components.
Common Applications
Through-beam sensors are often used for:
- conveyor systems
- pallet detection
- large object detection
- warehouse automation
- material handling equipment
👉 When maximum detection reliability is required, through-beam sensors are usually my first choice.
Retro-Reflective Sensors
Retro-reflective sensors use a transmitter and receiver housed in the same device. Instead of a separate receiver, a reflector is installed opposite the sensor.
The sensor emits light toward the reflector and monitors the returning signal. When an object passes between the sensor and reflector, the light beam is interrupted and the object is detected.
Key Advantages
- simpler installation than through-beam systems
- only one active device requires wiring
- longer sensing range than diffuse sensors
- cost-effective solution for many applications
Because the reflector is passive, installation is often quicker and less expensive.
Common Applications
Retro-reflective sensors are commonly used in:
- packaging systems
- material handling equipment
- conveyor lines
- logistics and distribution centers
They provide a good balance between detection performance, installation simplicity, and cost.
Diffuse Sensors
Diffuse sensors contain both the emitter and receiver in a single housing and do not require a reflector.
Instead, they detect light reflected directly from the target object.
When an object enters the sensing area, some of the emitted light bounces back to the receiver, triggering the sensor output.
Key Advantages
- easiest installation
- no reflector required
- compact design
- ideal for short sensing distances
However, detection performance can be affected by the target’s color, surface finish, and reflectivity.
For example, a shiny metal object may reflect light differently than a matte black product.
Common Applications
Diffuse sensors are widely used for:
- short-range object detection
- assembly machinery
- part presence verification
- packaging equipment
- production line automation
Field insight:
“If installation space is limited and the sensing distance is short, diffuse sensors are often the simplest solution. But for longer distances or difficult targets, I usually look at retro-reflective or through-beam designs first.”
Sensing Range Requirements
Choosing the correct sensing range is one of the most important steps when selecting a photoelectric sensor. A sensor may offer excellent performance on paper, but if the detection distance doesn’t match the application, reliability problems are almost guaranteed.
When evaluating sensing range, I look beyond the manufacturer’s maximum range specification. Factors such as target size, environmental conditions, and installation tolerances often have a much bigger impact on real-world performance.
Maximum Detection Distance
Every photoelectric sensor has a rated maximum sensing distance.
This specification indicates the farthest distance at which the sensor can reliably detect an object under ideal conditions.
However, operating a sensor at its absolute maximum range is rarely recommended.
In practice, it’s better to select a sensor with additional range capacity to compensate for:
- dust accumulation
- vibration
- target variations
- alignment changes over time
This helps maintain stable performance throughout the sensor’s service life.
Minimum Target Size
Detection distance is only part of the equation. The size of the object being detected also matters.
Smaller targets generally require:
- shorter sensing distances
- more precise alignment
- higher-performance sensors
For example, detecting a large pallet is much easier than detecting a small mechanical component moving at high speed.
Whenever possible, verify that the sensor’s specifications support the actual target size used in the application.
Safety Margins
One of the most common mistakes I see is selecting a sensor that operates too close to its performance limits.
A safety margin helps compensate for real-world conditions such as:
- dirty lenses
- changing lighting conditions
- target movement
- environmental contamination
As a general rule, I prefer sensors that operate well within their rated sensing range rather than right at the limit.
👉 Field insight:
“A sensor that works perfectly during installation may become unreliable six months later if there’s no margin for dust, vibration, or alignment changes.”
Long-Range vs Short-Range Applications
Different applications require different sensing approaches.
Long-Range Applications
Long-range detection is common in:
- conveyor systems
- warehouse automation
- pallet handling
- material transport systems
For these applications, through-beam sensors are often the preferred choice because they provide the longest and most reliable sensing distances.
Short-Range Applications
Short-range sensing is common in:
- assembly machinery
- packaging equipment
- robotic workstations
- part detection systems
Diffuse sensors are frequently used here because they are compact, easy to install, and effective at close distances.
Environmental Effects on Range
Real-world conditions can significantly reduce sensor performance.
Factors that commonly affect sensing distance include:
- dust
- moisture
- oil mist
- steam
- vibration
- ambient light
Even a high-quality sensor can experience reduced range if the environment is not considered during selection.
This is why I always evaluate the operating environment before choosing a sensing technology.
Photoelectric Sensor Range Comparison
| Sensor Type | Typical Range | Best Applications |
| Through-Beam | Longest | Conveyors, pallets |
| Retro-Reflective | Medium | Packaging, logistics |
| Diffuse | Short | Machine automation |
Environmental Conditions
A photoelectric sensor may perform perfectly during testing, but real industrial environments are rarely ideal. Dust, moisture, chemicals, temperature changes, and machine vibration can all affect detection reliability if the sensor is not designed for those conditions.
That’s why environmental factors should always be considered before selecting a sensor. In many cases, the operating environment is just as important as the sensing range or target size.
Dust
Dust is one of the most common causes of sensor performance issues.
When dust accumulates on the sensor lens, it can:
- weaken the light beam
- reduce sensing distance
- cause missed detections
- increase false triggering
This is especially common in industries such as:
- woodworking
- cement production
- packaging
- bulk material handling
For dusty environments, I typically choose sensors with higher protection ratings and make sure the lens can be cleaned easily during routine maintenance.
Moisture
Water and condensation can interfere with optical detection if the sensor housing is not properly sealed.
Common moisture-related issues include:
- lens fogging
- signal instability
- corrosion of electrical connections
- premature component failure
Moisture is frequently encountered in:
- food processing plants
- beverage production
- outdoor installations
- washdown environments
In these applications, selecting the correct IP-rated housing is essential.
Oil and Chemicals
Oil mist, lubricants, cleaning agents, and aggressive chemicals can damage sensor housings and reduce optical performance.
Potential problems include:
- contamination of the sensing surface
- degradation of plastic components
- seal damage
- reduced detection reliability
Chemical processing plants, machining centers, and manufacturing lines often require sensors with chemical-resistant materials and robust housing designs.
Choosing the Right Protection Rating
The sensor housing should be selected based on the severity of the environment.
IP65
Provides protection against:
- dust ingress
- low-pressure water jets
Suitable for many general industrial applications.
IP67
Provides protection against:
- dust
- temporary immersion in water
Often used in harsh manufacturing environments and outdoor installations.
IP69K
Provides the highest level of protection against:
- dust
- high-pressure washdown
- hot water cleaning
Commonly used in:
- food and beverage production
- pharmaceutical facilities
- hygienic processing environments
Practical Selection Advice
When selecting a photoelectric sensor, I always evaluate the environment before looking at sensing distance. A sensor with the perfect detection range can still fail prematurely if its housing isn’t designed for the conditions around it.
